ASTM D3822 繊維の引張特性

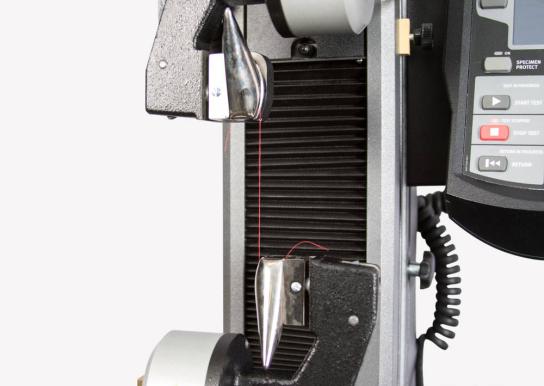

Instron’s pneumatic cord and yarn grips provide a convenient method for clamping fiber, cord, yarns and fine wires to reduce the problem associated with testing these materials.

• 製品
• 06/11/2013
• 490.84 KB

Pneumatic cord and yarn grips provide a convenient method for clamping fiber, cord, yarns and fine wires to reduce the problem associated with testing these materials. Rated capacity 1 kN.

• 製品
• 12/13/2012
• 778.59 KB

Pneumatic cord and yarn grips are designed to have interchangeable clamping blocks that accommodate fiber or yarns made from conventional fibers to newly developed high-performance fibers. A specially designed horn with a smooth, highly-polished or controlled surface roughness finish and a contoured surface with a graduated cam allows for easy loading and a stress-reduced clamping area on the specimen. The clamping mechanism can be activated either automatically or through a footswitch to allow hands-free grip operation; this enables the operator to hold the specimen with both hands for easy loading. Pneumatic cord and yarn grips provide selectable clamping force to accommodate different materials and excellent follow-up action that compensates for decay of the holding force due to specimen creep.

• 製品
• 09/19/2013
• 497.09 KB

The Instron 2712-05x Series Pneumatic Side-Action Grips offers a versatile gripping solution for a wide range of materials. Available in both 50 and 250 N options, the grip’s robust design is ideal for round (wires),fiber (mono-filaments), and flat specimens with or without shoulder.

• 製品
• 03/22/2022
• 1.86 MB

Instron 6800 Series Universal Testing Systems provide unparalleled accuracy and reliability. Built on a patent-pending Operator Protect system architecture with an all-new Smart-Close Air Kit and Collision Mitigation features, the 6800 Series makes materials testing simpler, smarter, and safer than ever before.

• 製品
• 02/10/2020
• 4.15 MB

Instron 3400 Series universal testing systems for tensile, compression, bend, and other material property tests.

• 製品
• 06/27/2022
• 2.69 MB

Bluehill Universal is Instron’s advanced materials testing software, designed for intuitive touch interaction and streamlined workflows. It offers pre-loaded test methods, QuickTest for rapid setup, enhanced data exporting, and Instron Connect for direct service communication. Users of Bluehill 2 and Bluehill 3 can easily upgrade to the latest version for improved performance and usability.

• 製品
• 02/26/2017
• 3.76 MB
